EASY Engineering tools
You want to plan, build or commission machines? Set up or carry out diagnostics on existing machines? Regardless of whether these applications are simple or require maximum precision and dynamics: You can select the tools that are right for you and make your engineering faster and easier.
EASY Product Finder
The EASY Product Finder (EPF) supports designers and purchasers in selecting and procuring Lenze drive and automation products. The EPF supports you in your search for the right products with intuitive search functions. This includes, for example, CAD data and product-relevant torque-speed characteristics. Basic sizing makes it easy to calculate applications and develop initial ideas for the machine solution.
The EASY Product Finder (EPF) supports designers and purchasers in selecting and procuring Lenze drive and automation products.
- Clear display of all products
- Quickly find the right products with the various search functions
- The EPF searches our product database for you using performance data or specific properties in order to present you with the right product
- Central management via the shopping cart
Your personal login provides the following options:
- Search for products by material number
- Determine prices and availability
- Place orders directly
- View order history
Comprehensive products such as geared motors can be adapted simply and to suit your machine requirements. Your product selection is added to the shopping cart and can be printed out as a results list. Therefore a price inquiry is possible with a just few mouse clicks. You will receive all necessary information in no time.

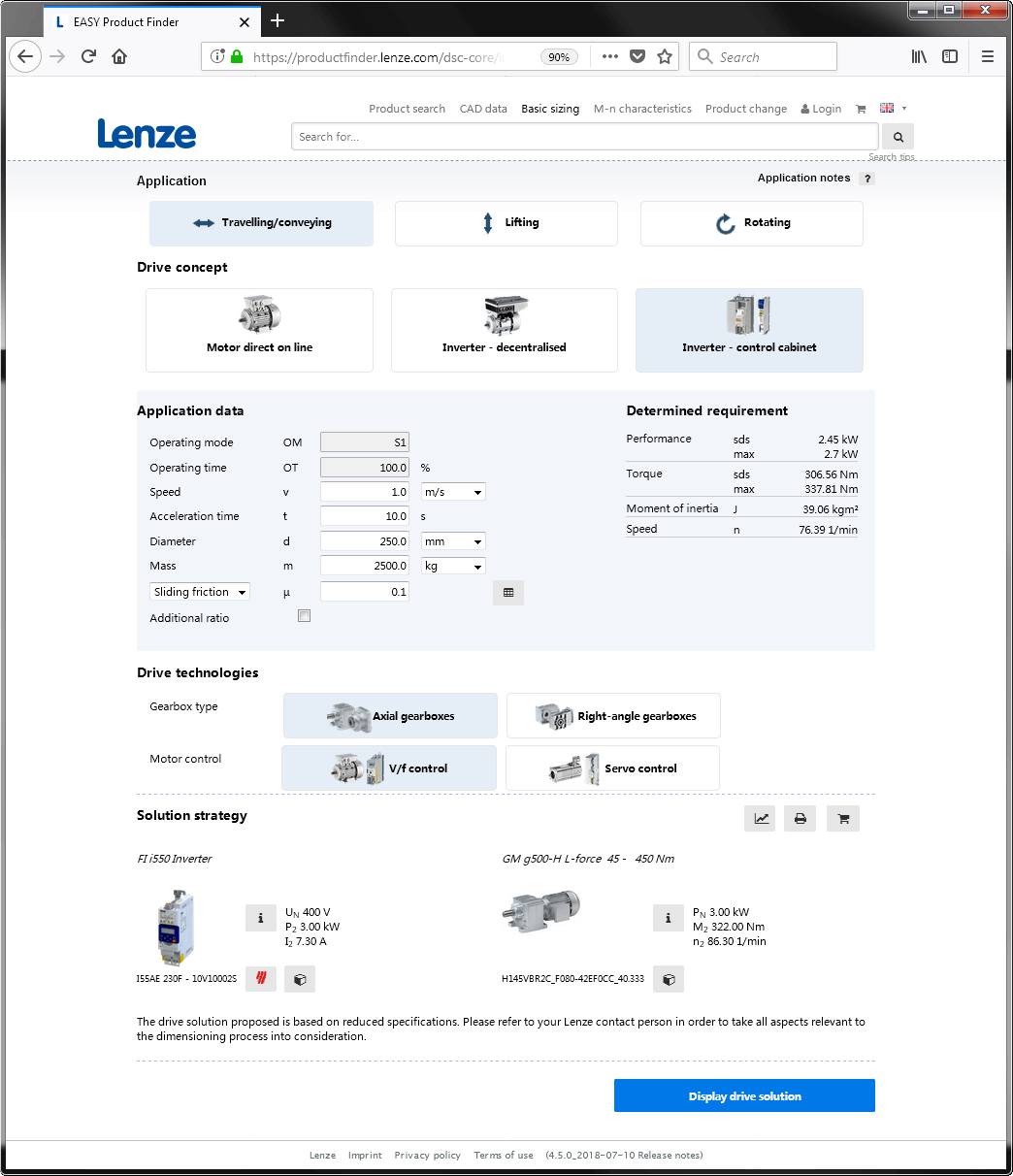

The basic sizing of the EPF allows you to develop an initial draft for a drive solution consisting of a geared motor and inverter. It is easy to create a drive solution in just a few steps using basic applications such as travelling/conveying, lifting or rotating.
Flexible access from anywhere: Productfinder.Lenze.com
The EPF supports you in your search for the right products with intuitive search functions.
- The quick search provides a targeted entry based on the most important search criteria
- Search criteria, product properties or type designations can be entered directly and linked via the keyword search
- Further useful search criteria in the detailed search help to refine the result or to enable other search entries
- Product suggestions from the results list can be compared based on their properties
- Additional options can be defined subsequently in the product configuration for products with many variants, such as geared motors
The shopping cart is the central location for storing your selected products and for carrying out all further steps in the procurement process.Shopping carts can be stored locally, divided and merged when they are loaded.
Storage of the product selection:
- Product search
- Product configuration
- Basic sizing
- Sizing from the DSD
- Material number (login)
- Order history (login)
Shopping cart functions for the further procurement process:
- View/log product data
- Modify product configuration

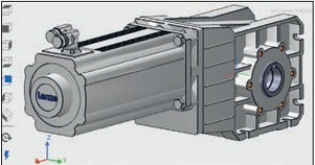

- Generate CAD data
- Make request for quotation
- Determine prices and availability (login)
- Order products directly (login)
In addition to the pure product search in the EASY Product Finder, the basic sizing offers you the opportunity to easily come up with a "first" draft of a drive solution for a geared motor with an inverter.
The tool comes to a solution quickly and efficiently in just a few steps using basic applications such as travelling/conveying, lifting or rotating.
- Select application
- Select drive concept
- Enter the application data
- Select drive technologies
- Find drive solution
Including M-n characteristics, CAD and ePLAN data. The solution can be logged and transferred directly to the shopping cart.
- Search for and find CAD data in a targeted manner
- Retrieve a product directly from the shopping cart
Available in all common 2D and 3D formats, including 3D PDF

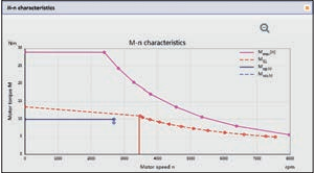

Determine and log torque-speed characteristics of motor/inverter combinations.

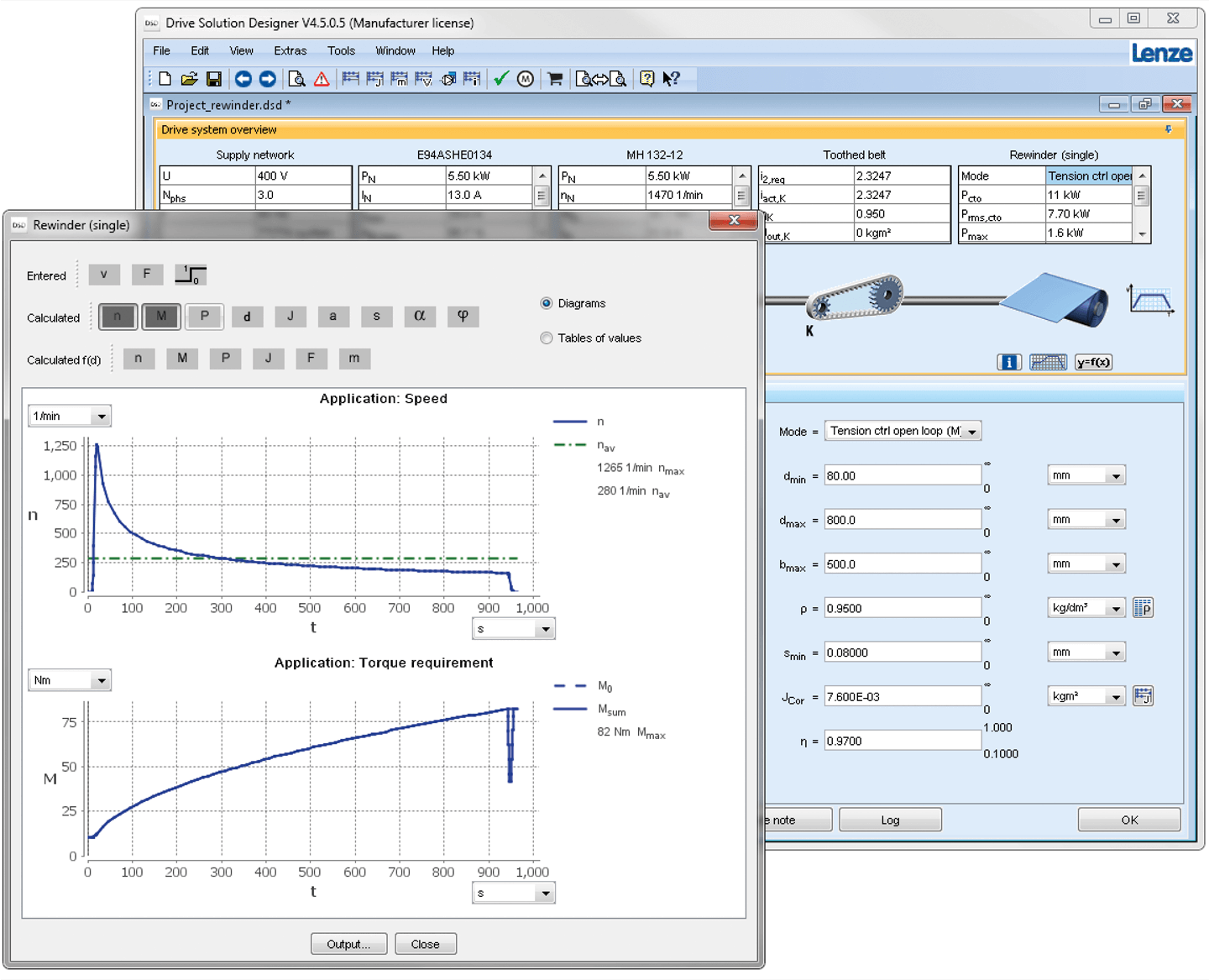

Drive Solution Designer
Application-oriented drive sizing is the be-all and end-all for the development of a goal-oriented machine concept. Create, optimise and document drive solutions with the Drive Solution Designer (DSD). The DSD considers energy efficiency separately for each application. As a result, the tool uncovers potential savings for you during the development of the machine concept.
A mechatronic system analysis is extremely important for a machine concept. Designers can quickly and easily determine the right drive sizing with the Drive Solution Designer (DSD).
The DSD contains well-founded and proven knowledge on drive applications and electro-mechanical drive components. This knowledge is made available to you interactively. Both simple and complex applications are defined by their individual process data and specific speed curves.

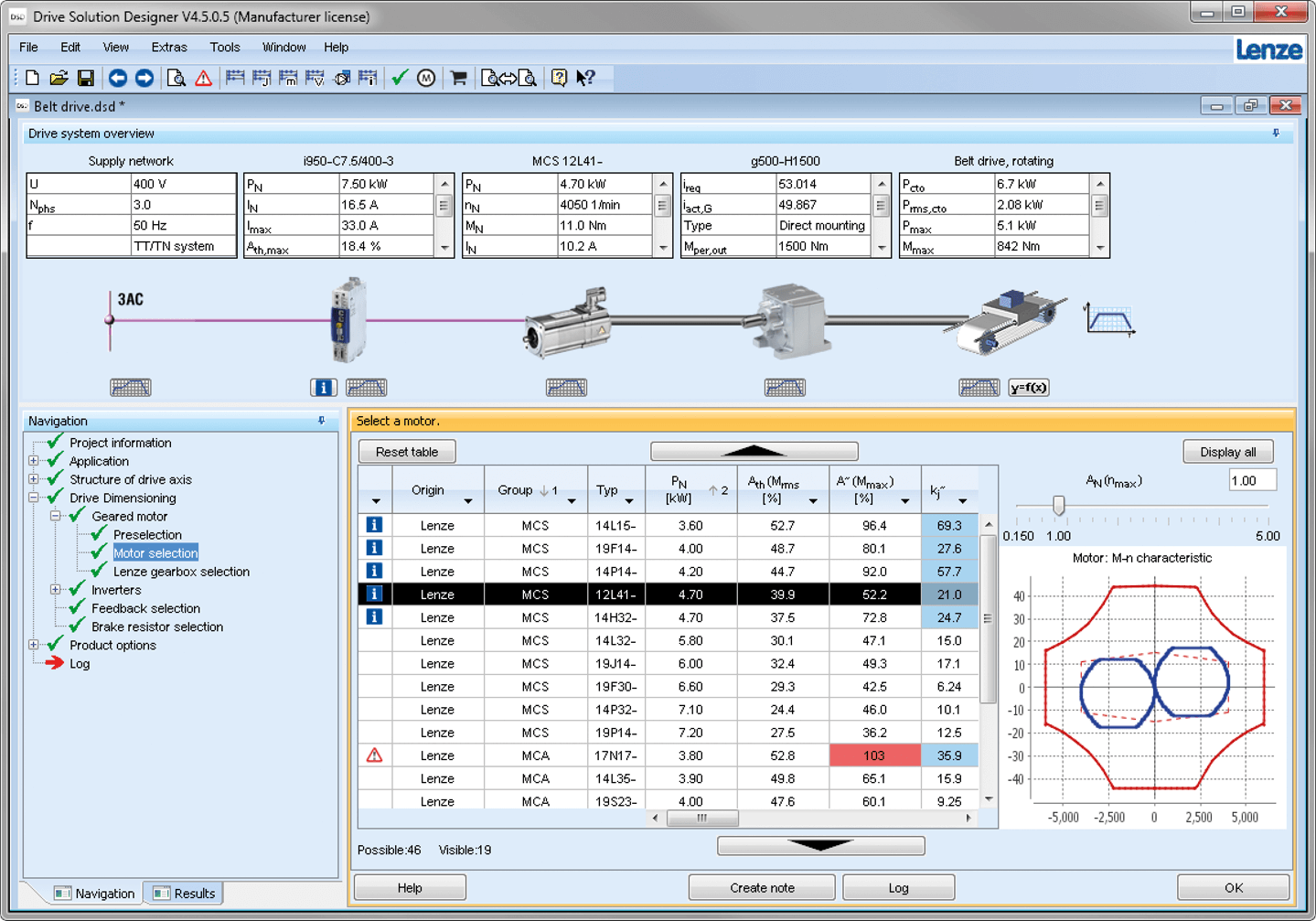

The mechanical and electrical drive structure can be individually adapted to the requirements of your machine. The drive components are tested for both the physical requirements as well as the feasible combinations.
All parties involved in the planning process have a shared view of the development of the drive solution.
the application to achieve the optimum drive solution.
The energy performance certificate transparently illustrates the energy balance of the calculated drive solution. A detailed technical protocol summarises the design results.
The DSD is equipped with an interface to the EASY Product Finder (EPF), thereby combining the advantages of the EPF with those of the DSD.
The highlights of the DSD include optimum ease of operation for quick and simple drive sizing, analysis and testing of the entire drive system and the creation of alternative drive solutions.
- Design engineers in the planning phase
- Project engineers in the development and commissioning phase
- Service personnel for checking field problems
- Comprehensive applications such as linear and rotary drives, winding drives, wheel drives, hoist drives and synchronised drives, belt conveyors and pumps
- Process parameters with solution knowledge
- Description of standardised operating modes

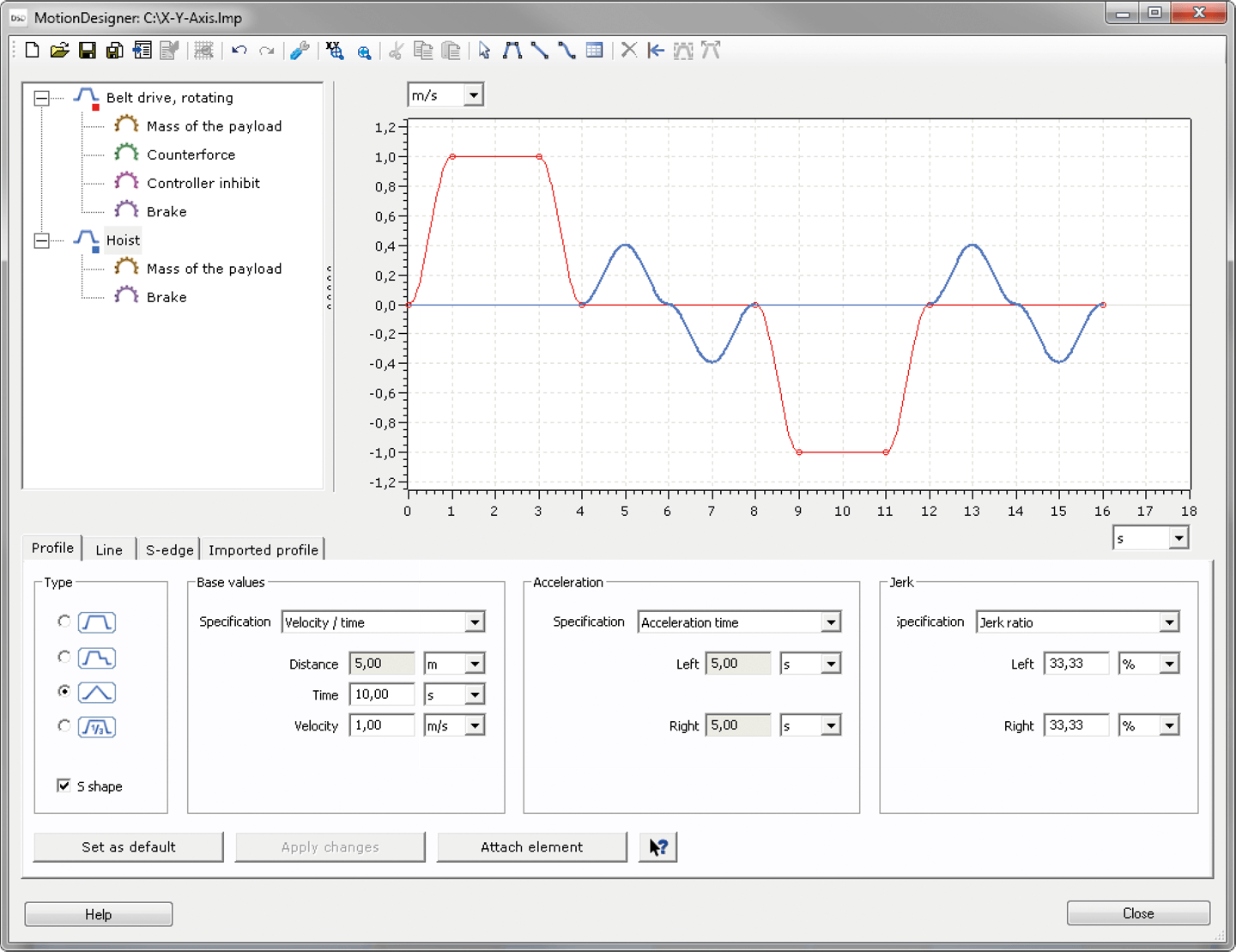

- Freely definable motion sequences using convenient editor
- Import of an M/n load characteristic
- Check lists for collecting the application parameter
- Network configurations and voltages
- AC mains and DC multi-axis grouping
- Ambient conditions
- Motor on inverter with different control processes
- Mechanical built-on accessories (brakes, encoders)
- With or without gearboxes
- With or without additional drive element
- Single and multi-axis systems
- Regenerative power supply modules
- Brake resistors
- Component combinability
- System integration and product knowledge
- Sizing of application motors
- Limit loads (electrical/mechanical)
- Utilisations, reserves, mains load
- System tests, e.g. by considering the M-n characteristic of the drive system up to field weakening
- Possible combinations
- Losses and energy efficiency
- Coordinated motion sequences
- Drive Solution Energy Performance Certificate
- Transparency for the application and the entire drive system
- Energy requirements, energy costs, CO2 emissions, optimisation potential, amortisation
- Application tuner: immediate comparison of solutions with different operation of the application
- Solution documentation through adaptable protocols (short and detailed protocol, commissioning protocol)
- Optimum ease of operation for fast, simple and professional drive sizing
- Optional selection of the product options
- Consideration and check of the entire drive system
- Providing alternatives with comparison
- Various host computers and tables of values
- Available in different languages
- Metric and imperial units
- Online help with operating and sizing tips
- Comprehensive web links to further information sources
The PLC Designer is the tool for program creation and commissioning of products with PLC functionality on the basis of CODESYS V3. Logic & motion is programmed in accordance with the IEC 61131-3 standard. PLCopen certified components for motion control and coordinated motion make it easy to implement even extensive PLC projects. A graphical cam editor for cam profiles, debuggers and monitoring functions provides you with support.
The PLC Designer is the tool for your program creation and commissioning of our PLC products. The PLC products are programmed in accordance with the IEC 61131-3 standard.
The PLC Designer offers you all the functions you need for convenient engineering of controller-based solutions. In addition, we offer you comprehensive support in the realisation of your projects through our application engineers in every project phase.
The software is based on CODESYS V3 and is intended for project engineers of mechanical engineering companies. The PLC Designer functionalities include an extensive library of function blocks for a wide range of tasks. The PLC Designer can be used in combination with the EASY Starter for straightforward commissioning.
PLC functionality in line with IEC 61131-3
- Instruction list (IL)
- Ladder diagram (LD)
- Function block diagram (FBD)
- Structured text (ST)
- Sequential function chart (SFC)
- Continuous function chart editor (CFC)
Simply master the complex
- Library collection with standardised FAST technology modules
- Different versions of the same library can be used
- Several control systems in one project
- Separation of functioning and hardware
- Several applications on one hardware device
- All diagnostic and parameterisation dialogs of the EASY Starter are also available in the PLC Designer
- Object-oriented programming
- Conditional code generation - facilitates the creation of scalable programs through the use of pre-processor instructions
Graphical cam editor
- Easily define even complex motion control. Including cam tracks as well as import and export of data point tables
EASY UI Designer
The EASY UI Designer is your tool for easily creating modern user interfaces for our v800 industrial PC series. The software offers comprehensive functions and an efficient graphical editor for designing individual user interface concepts for mechanical and plant engineering. Create your own templates for a personalised application and move the focus to the user - with intuitive and user-friendly machine operation.
An intuitive interface design supports simple and error-free operation in complex situations. The EASY UI Designer provides you with tried and tested innovations from the field of graphic design and modern user interface designs.
You can easily create optimised, individual operating concepts for different user groups using examples and the supplied control objects. The operating elements can be adapted dynamically by the operator during runtime.
The customised machine visualisation and user interface satisfy the requirements for user-oriented operation and provide an optimum user experience.A high-performance graphical editor supports your project planning and simplifies the interface design by means of drag and drop.
The EASY UI Designer can be used to design an online editable dashboard with predefined widgets as well as multi-touch gestures.
The EASY UI Designer is based on an open system approach: Advanced non-standard operating elements can be developed collectively.
- Supported series: v800
- Vector-based visualisation
- Online editable, user-specific dashboard with predefined widgets, such as donut, gauge, trend, bar graph, actual value display
- Can be extended for individual customer requirements by adding controls, templates, styles, property filters, project types, etc.
- Quicker and easier operation with advanced technologies that support multi-touch gestures
- Comprehensive template library
- Customisable view & project templates
- Customisable layout
- The ability to create your own templates
- Advanced communication error handling, e.g. through optical feedback of the controls
- OPC UA
- Optional connections to 3rd party control systems
- Variable abstraction layer/switching between control systems
Language switch function
- All texts are created in Unicode
- Texts with dynamic components (variables)
- Switching of characters (Europe/Asia), units, symbols and colours
- Import and export tool for Excel
- Structuring and definition of alarm classes, alarm groups, user-defined display elements with filtering and sorting
- Different types of acknowledgement
- History with language switchingEASY
- Single recipes with variable values
- File and transfer operations triggered by PLC or user
- Transferable recipe files
- Integrated history
- Value editing directly on the user interface
- Recording for y-t and x-y diagrams
- Ring buffer in the memory or as a file
- Sequential archives for time periods (day, week, etc.) or for batch data
- Profile selection for runtime; arbitrary scaling and zoom
- Automatic recording of system, operating and user events
- FDA CFR 21 Part 11 compliant audit trail
- User's log
- User administration at runtime
- Comprehensive settings regarding password and logging mechanism
- FDA CFR 21 Part 11 compliant access protection
The EASY Starter supports service technicians with the commissioning and maintenance of your machines thanks to easy-to-use diagnostic and parameterisation dialogs. As an option, the tool facilitates online diagnostics and troubleshooting without the danger of inadvertent changes to the application. The EASY Starter provides all the functions required for safe machine operation. The basic functions of the EASY Starter can be used to load finished applications, update device firmware and adjust parameters in context-guided interfaces.
By users for users. The EASY Starter supports you in the commissioning and maintenance of your machines. Easy to use parameterisation and diagnostic dialogs and a structured graphical user interface allow you to keep the necessary overview in every situation.
The EASY Starter has been designed specifically for the commissioning and maintenance of Lenze products. The tool enables online diagnostics and troubleshooting within this framework. No parameter modification is possible in the diagnostic mode, meaning that there is no danger of accidental application modification.
A user-friendly menu navigation featuring just a few buttons supports you in all machine adjustments.
The EASY Starter includes all functions that are of importance to you, such as the loading of finished applications onto the device, updating the device firmware or adjusting parameters in context-guided interfaces. The EASY Starter has the right user interface for a variety of applications. Commissioning and maintenance
- Interfaces optimised for different applications and users
- Concise menus with just a few buttons
- User guidance independent of the device
- Easy management of multiple devices
- The right parameter with just a few clicks
- Direct support for all device parameters and message
The EASY Starter can be used in operating modes specific to the application, giving each user an individually tailored interface to efficiently perform their task:
- EASY Starter
- EASY Starter/Online only
- EASY Starter/Online & Read only
- EASY Application Loader
- EASY Firmware Loader
- Smart Motor
- The full range of functions of the EASY Starter for all users who want to diagnose and set up machines and drives.
- Management of offline and online devices
EASY Starter Online only
- Modifications of parameters directly in the connected device
- Communication via all existing Lenze OPC bus servers
- Easy selection of the communication path to the device
- Transfer to several devices possible
EASY Starter Online & Read only
- Simple online device diagnostics - without the danger of inadvertent changes to the application
EASY Application Loader
- Easy-to-use assistant for service personnel of mechanical engineering companies and end customers
- Load the finished customer application into devices in just a few steps
- Batch control available for serial commissionin
EASY Firmware Loader
- Easy-to-use assistant for service personnel of mechanical engineering companies and end customers
- Load firmware into devices in just a few steps
- Batch control available for serial commissioning
Lenze Smart Motor
- For service personnel of mechanical engineering companies and end customers who use the Lenze Smart Motor
- Easy-to-use PC tool for parameterising the Lenze Smart Motor
- Transfer to motor via USB-NFC adapter (not included in the scope of supply)
Further downloads for EASY Engineering Tools and previous products can be found in the Download Self Service area.
Everything you need in the planning phase of your machine: quickly and easily identify, design and assemble the right products. And when operating your machine, you can access all the parameters quickly and adjust them if necessary.
With additional functions for convenient commissioning and optimisation of the drive train, your possibilities are broadened. This allows you to configure machines more quickly. Become more confident about developing and commissioning your machine. With the EASY Advanced licence, you can adjust, analyse and optimise the drive for the application in question more precisely and efficiently.
Machine programming according to industrial standards: EASY Professional contains all the functions you need to plan and implement complex tasks to completely automate the machine.
Possible variants for all license levels:
- Single: Single user license for one workstation
- Company: Multi-user license for all workstations within a company
- Buyout: Multi-user license for all workstations within a company, sub-licensing to customers as part of machine supply permitted
