Runtime - Client: After calling up a "Page" or "View", the visualization can no longer be operated

Corrected from:
​EASY UI Designer V1.6
Behavior of the new version:
The Page name property or the NavigateToPageAction action can be used to navigate to a page or view even though it is already open or displayed.

Description of the behavior:
Will be the currently displayed page/view called again via the property Page name or the action NavigateToPageAction, then the client will no longer respond to further page switches.

Example "Button"
(Property --> Navigation --> Page name)

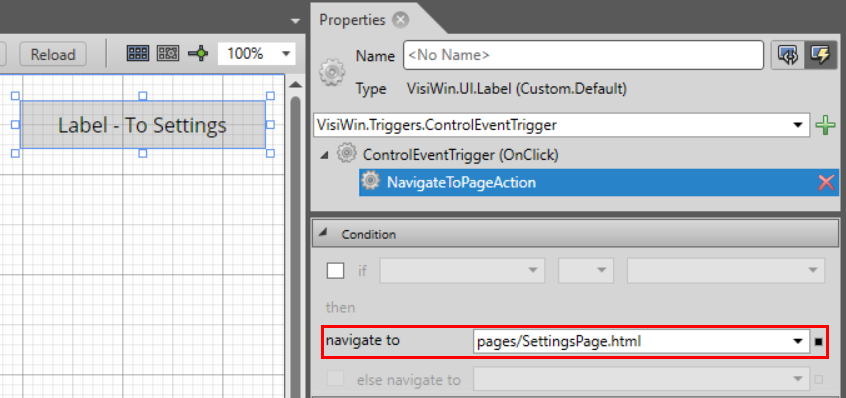

Example "Label"
(Actions --> Trigger --> NavigateToPageAction)

Conditions under which the behavior occurs:

  • Navigate to a page that is already currently displayed in the Visu.


Affected products:
​EASY UI Designer V1.5

Short-term measures, Recommendations, Rating:
  1. Reload the visu or restart the machine.
  2. Implement locking:

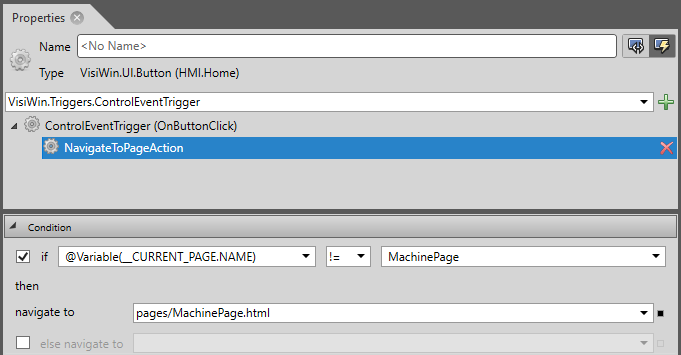

    As can be seen in the following screenshot, the behaviour can be bypassed with a simple call interlock.
    2024-01-29 10_43_40-1.png
    If this is used, the property "Navigate --> Page name" must no longer be configured.
    2024-01-29 10_43_40-.png


[Automatic Translation]


URL for linking this AKB article: https://www.lenze.com/en-de/go/akb/202400017/1/
