Eliminated function restriction:
If a parameter set is generated and saved on a 9300vector device equipped with a software version ≤ V6.3 (in the keypad or via GDC) it could happen that a wrong entry was made under code C0095 when these parameters were transferred to a basic device equipped with a software version ≥ V7.0. This behaviour has been eliminated in software version 7.3 and V7.1 (110 ... 4000 kW) as follows:
Parameter set transfer via keypad:
The basic device recognises if code C0095 is transmitted. If this is not the case the magnetising current is recalculated from the motor data under code C0095.
Parameter set transfer via GDC:
GDC with the 'new' device description '93EVV730.PDB' (0.37 ... 90 kW) and '93GLEVV710.PDB' (110 ... 400 kW): The basic device recognises which firmware version has been used to generate the parameter set in GDC. Regarding this, code C0099 'software version' is also transmitted if the parameter set is transferred via GDC. If the value of code C0099 is < 7.0, code C0095 is recalculated from the motor data.

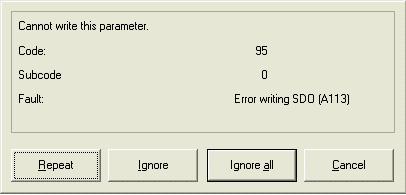

GDCwith the 'current' device description '93EVV710.PDB' (0.37 ... 90 kW) and '93GLEVV700.PDB' (110 ... 400 kW): The basic device recognises that a device description '93EVV710.PDB' (0.37 ... 90 kW) and '93GLEVV700.PDB' (110 ... 400 kW) is used. If the user had not changed code C0095 the value will be transferred without problems. If the value deviates from the value calculated the message mentioned is generated while the parameters are transferred (see screenshot at the end of this article).
If the 'Ignore' or 'Ignore all' button is pressed the transfer is completed as usual and the calculated value is entered under code C0095.
GDC with the 'old' device description ≤ '93EVV620.PDB' (0.37 ... 90 kW) and '93GLEVV620.PDB' (110 ... 400 kW): The basic device recognises that a device description older than '93EVV710.PDB' (0.37 ... 90 kW) and '93GLEVV620.PDB' (110 ... 400 kW) is used. The value under code C0095 is always recalculated from the motor data.
