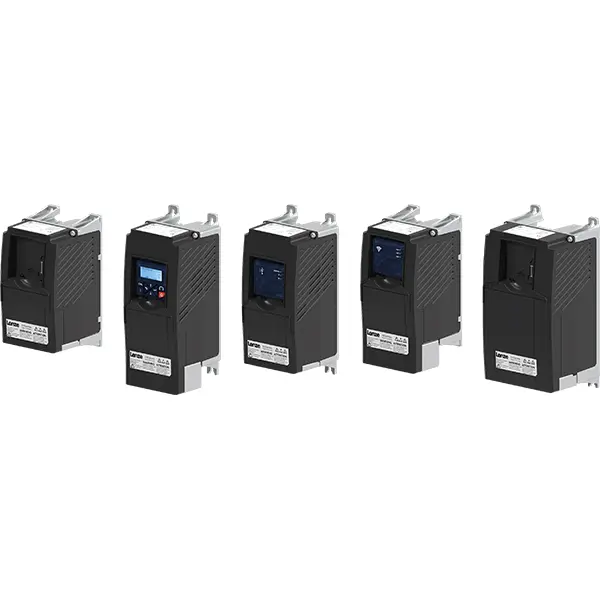

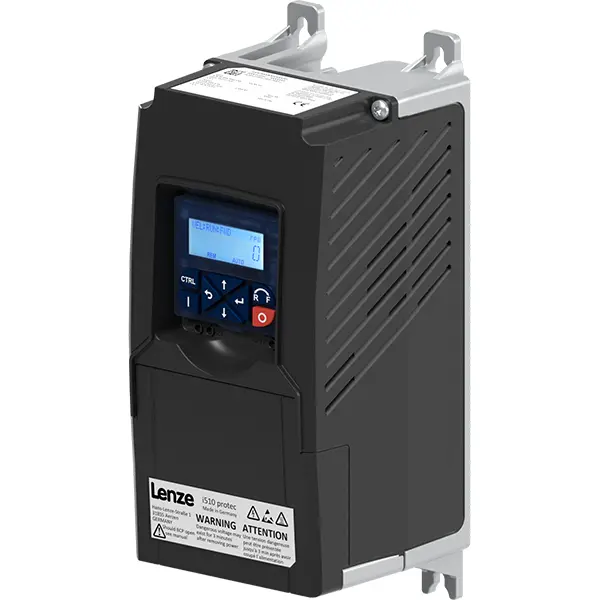

The i510 protec frequency inverter uses the same tried-and-tested technology used in our control cabinet inverters. It only differs in terms of an adapted design. If there is not enough space in the control cabinet or the inverter has to be mounted directly on the motor in various machine modules, then this versatile and reliable device is the right solution.

The requirements of the Ecodesign Directive, Standard EN 50598-2, are met.

Application areas: Conveyor drives, traveling drives, pumps, fans, ...

Highlights

  • Versions with keypad, USB module or WLAN module for easy commissioning
  • Industry standard fieldbus network options

Technical data and features

Technical data

0.37 ... 7.5 kW

Connections

1 AC 120 V
1 AC 230 V
3 AC 230 V
3 AC 400 V
3 AC 480 V
5x digital input
1x digital output
2x analog input
1x analog output
1x NO/NC relay
Motor temperature monitoring

Communication

CANopen
Modbus RTU
