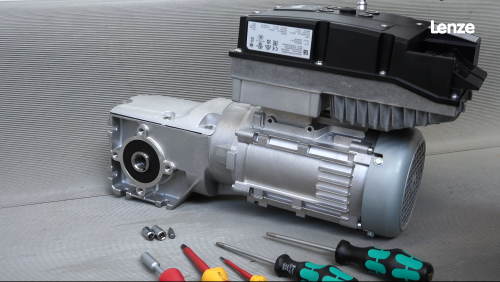

This video shows the mounting of a frequency inverter i550 motec (0.75 kW) on a Lenze three-phase geared motor (BG 063 - 071) with terminal box.
ATTENTION!
Bridge arrangement for star or delta connection according to the requirements of the application.
Applicable for the following rated power:
0.37 … 3 kW (3 AC 230/240 V)
0.37 ... 5.5 kW (3 AC 400/480 V)
Required tools:
- Phillips screwdriver PH2 x 100 mm
- Torx screwdriver T20
- Torx screwdriver T25
- Socket wrench screwdriver (M4, M5 or M6)
- Slotted screwdriver 3 x 100 mm
- Torque wrench (2.5 ... 25 Nm)
Chapter in the video
- Safety instructions
- Adapter mounting (M4, 3 Nm) (M5, 5.9 Nm)
ATTENTION!
Bridge arrangement for star or delta connection according to the requirements of the application. - Mains connection mounting (M4, 1.5 Nm) (M5, 2 Nm) (M6, 3.5 Nm)
- Terminal board mounting (M4, 2.2 Nm)
- Thermal sensor mounting
- PE screw mounting (M4, 2 Nm)
- i550 motec frequency inverter mounting (M5, 2.5 Nm)
Duration:
02:06 min
Video:
VID_i550_motec_motormontage_EN.mp4
