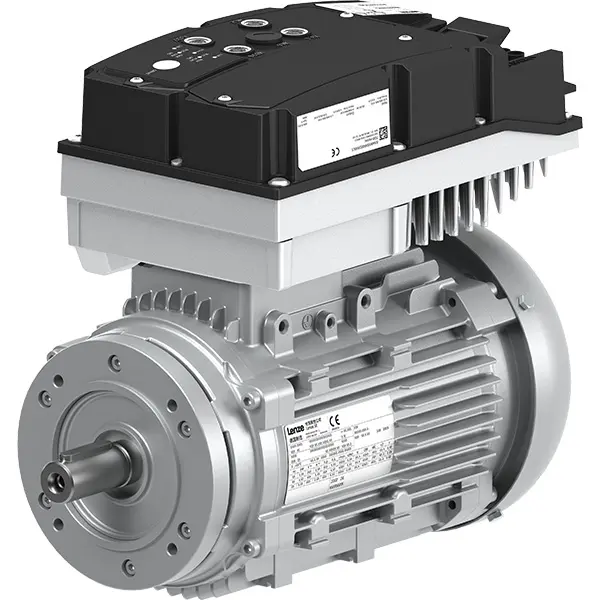

IE6 three-phase motors m550-V + i550 motec
Compared to an IE3 motor, the m550-V three-phase motors reduce motor losses by up to 60% and exceed global efficiency requirements. In many regions of the world, investments in motors with IE6 energy efficiency (Grade 1 for China) are promoted in order to significantly reduce CO₂ emissions.
The IE6 m550-V three-phase motors cover the power range 0.25 ... 7.5 kW and offer the highest efficiency according to IE6.
Highlights
- Highest energy efficiency class IE6 according to IEC TS 60034-30-2 and Grade 1 according to GB30253-2024 for economical and future-proof use in many applications and countries
- Starting torque up to 300% from standstill
- Size as compact as a standard three-phase motor
- The motors are optimized for sensorless operation with Lenze drives
- Scalable modular system for optimum adjustment to machine requirements
- Easy connection via terminal box or conventional connectors for fast commissioning
- Speed control via the integrated VFD enables universal use
Technical data and features
| Technical data | 0.25 ... 7.5 kW |
|---|---|
| Version | B3 |
